The 2.0-liter Hyundai D4HA 2.0 CRDi diesel engine has been produced in Korea since 2009 and is installed on many popular crossovers such as Sportage, Tucson or Santa Fe. There are two different power modifications of this power unit for 136 or 185 hp.
Diesels of the R series were designed in the European research and development center of the concern, which is located in Rüsselheim, that is, they are Hyundai-Kia’s own development. Units with a volume of 2.0 and 2.2 liters debuted in 2009 on several popular crossovers. Structurally, there is a cast-iron block, an aluminum 16-valve cylinder head with hydraulic lifters, a Common Rail Bosch CP4 fuel system with 1800 bar piezo injectors and a timing chain drive.
This 2.0-liter powertrain is available in two powertrain versions: a 136-hp version equipped with a BorgWarner BV39 variable geometry turbocharger, and a 184-hp version equipped with a Garrett GTB1752VLK variable geometry turbocharger.
The R family also includes diesels: D4HB, D4HC, D4HD, D4HE and D4HF.
The D4HA engine was installed on:
- Hyundai Santa Fe 2 (CM) in 2009 – 2012; Santa Fe 3 (DM) in 2012 – 2018;
- Hyundai ix35 1 (LM) in 2010 – 2015;
- Hyundai Tucson 3 (TL) in 2015 – 2021;
- Kia Sorento 2 (XM) in 2011 – 2014; Sorento 3 (UM) in 2014 – 2017;
- Kia Sportage 3 (SL) in 2010 – 2016; Sportage 4 (QL) in 2015 – 2021.
| Production years | since 2009 |
| Displacement, cc | 1995 |
| Fuel system | Common Rail |
| Power output, hp | 136 – 184 |
| Torque output, Nm | 320 – 400 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 90 |
| Compression ratio | 16 – 16.5 |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Turbocharging | yes |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 8.8 |
| Fuel type | diesel |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Kia Sportage 2017)— city— highway— combined | 7.9-5.3-6.3 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 214.9 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

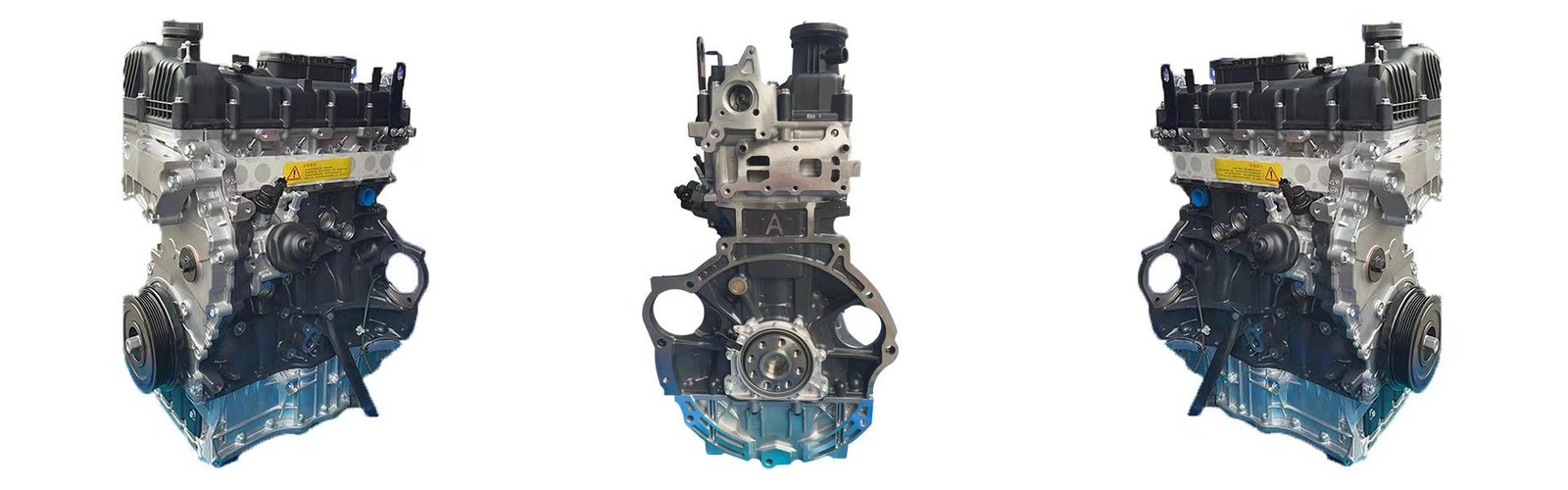

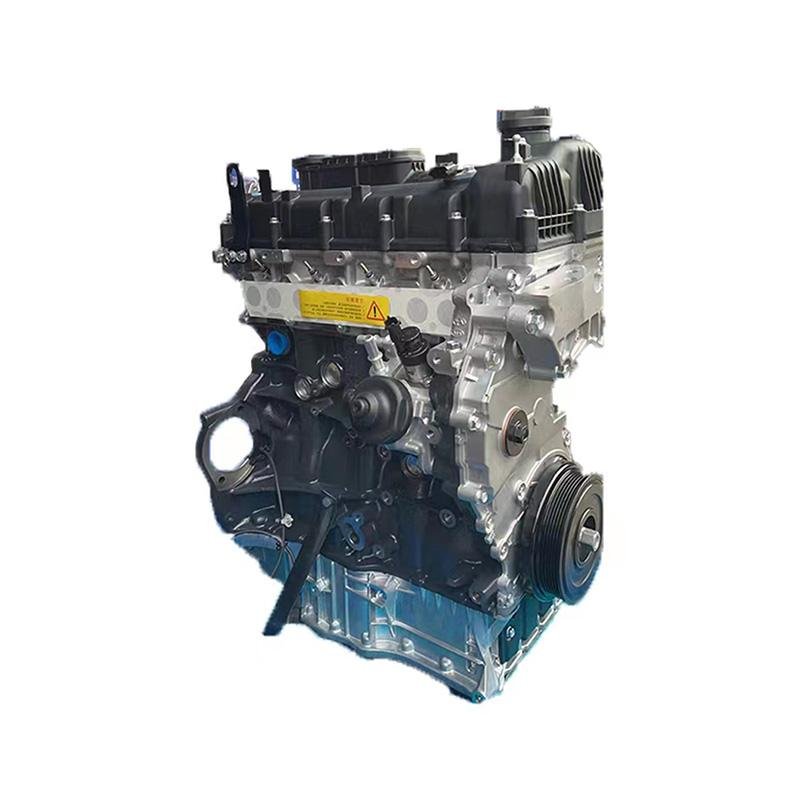

The HYUNDAI D4HA engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
