The 1.4-liter Hyundai G4FA engine has been produced at the company’s Chinese plant since 2006 and is primarily known as the base power unit of such models as Ceed, i20, i30, and Accent.
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
In 2006, a 1.4-liter unit debuted on the new Ceed model for the European market. By design, this is a typical motor with an aluminum block, an open cooling jacket, an aluminum 16-valve cylinder head without hydraulic lifters, and a timing chain with a hydraulic tensioner. Fuel injection is distributed here, and there is a phase regulator on the intake camshaft. This unit is equipped with a plastic intake manifold without a geometry change system.
During production, the engine has been modernized more than once, and the main update is the replacement of a huge “ram’s horn” exhaust manifold with a regular small catalytic converter. It was after this that the unit began to lift up due to the ingress of catalyst crumbs into the cylinders.
The HYUNDAI G4FA engine was installed on:
- Hyundai Accent 4 (RB) in 2010 – 2018;
- Hyundai i20 1 (PB) in 2008 – 2014;
- Hyundai ix20 1 (JC) in 2010 – 2019;
- Hyundai i30 1 (FD) in 2007 – 2012; i30 2 (GD) in 2011 – 2015;
- Hyundai Solaris 1 (RB) in 2010 – 2017;
- Kia Ceed 1 (ED) in 2006 – 2013; Ceed 2 (JD) in 2012 – 2015;
- Kia ProCeed 1 (ED) in 2007 – 2010;
- Kia Rio 3 (QB) in 2011 – 2017; Rio 3 (UB) in 2011 – 2017;
- Kia Venga 1 (YN) in 2009 – 2019.
| Production years | since 2006 |
| Displacement, cc | 1396 |
| Fuel system | distributed injection |
| Power output, hp | 99 – 109 |
| Torque output, Nm | 135 – 137 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 75 |
| Compression ratio | 10.5 |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 3.7 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Hyundai Solaris 2012)— city— highway— combined | 7.6-4.9-5.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 99.5 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

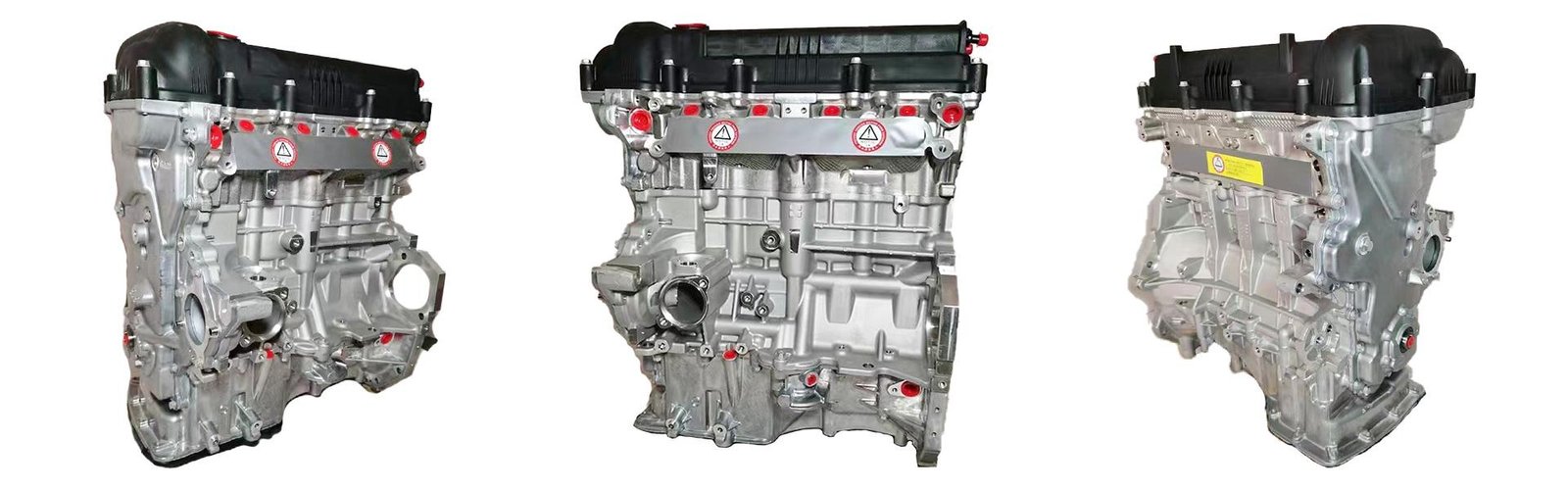

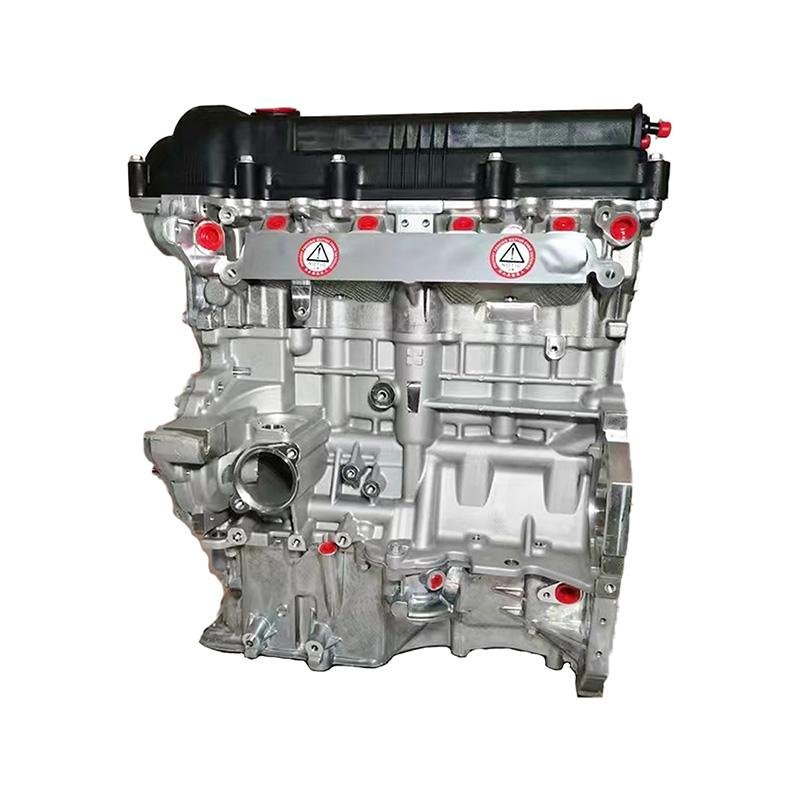

The HYUNDAI G4FA engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
