The Toyota 1KD engine, which replaced the 1KZ, uses Denso’s Common rail injection system. The engine is also equipped with a Toyota CT16V turbocharger with variable geometry and an intercooler. This turbine generates a 1.1 bar excess.
Maintenance of 1KD motors is no different from standard motors in this class. Engine maintenance is carried out at intervals of 15,000 km. The recommended service must be carried out every 10,000 km.
The 1KD Engine Part was installed on:
- Toyota 4Runner 4 (N210) in 2002 – 2009;
- Toyota Fortuner AN60 in 2004 – 2015;
- Fortuner 2 (AN160) since 2015;
- Toyota Hiace;
- Toyota Hilux 6 (N140) in 2001 – 2005;
- Hilux 7 (AN10) in 2005 – 2015;
- Hilux 8 (AN120) since 2015;
- Toyota LC Prado 120 (J120) in 2006 – 2009;
- LC Prado 150 (J150) since 2015.
| Production years | since 2000 |
| Displacement, cc | 2982 |
| Fuel system | Common Rail Denso |
| Power output, hp | 109/3000-136/3400-163/3400-170/3600-173/3400 |
| Torque output, Nm | 286/1200-1600-300/1200-2400-343/1400-3200-343/1400-3400-410/1600-2800 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 96 |
| Piston stroke, mm | 103 |
| Compression ratio | 17.9 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt and gears |
| Phase regulator | VVT-i since 2013 |
| Turbocharging | VGT |
| Recommended engine oil | 0W-30 (since 10.2010), 5W-30, 10W-30, 15W-40, 20W-50 |
| Engine oil capacity, liter | 7.0 |
| Fuel type | diesel |
| Euro standards | EURO 2/3/4 |
| Fuel consumption, L/100 km (for Toyota Fortuner 2012)— city— highway— combined | 10.6-7.3-8.5 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 260 |
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

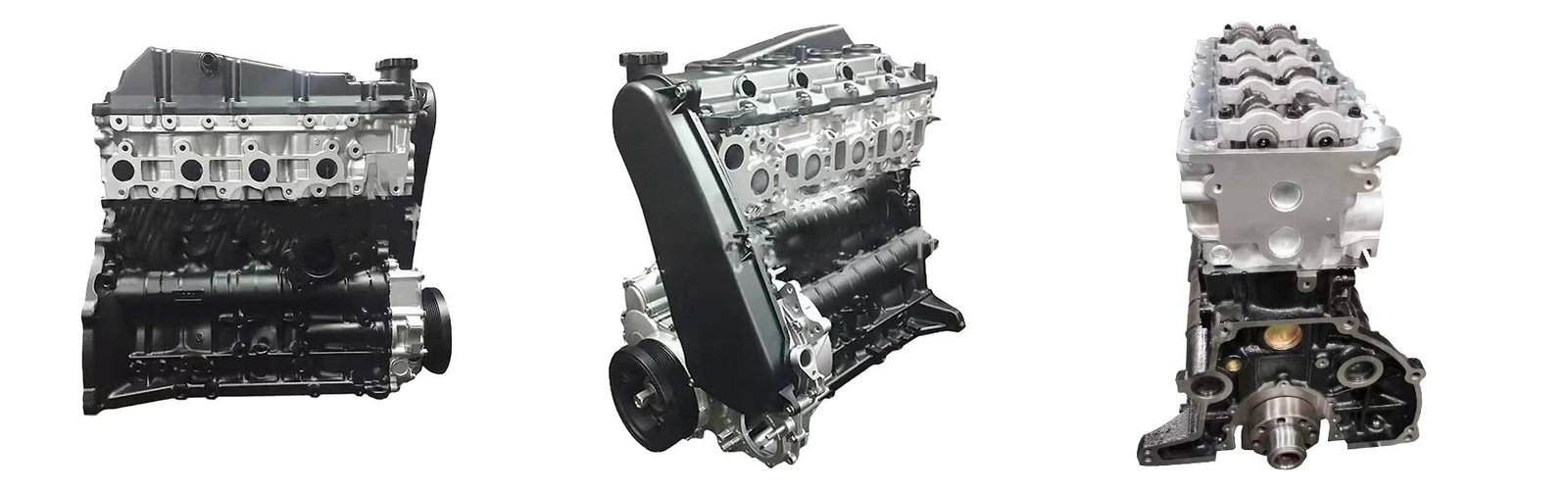

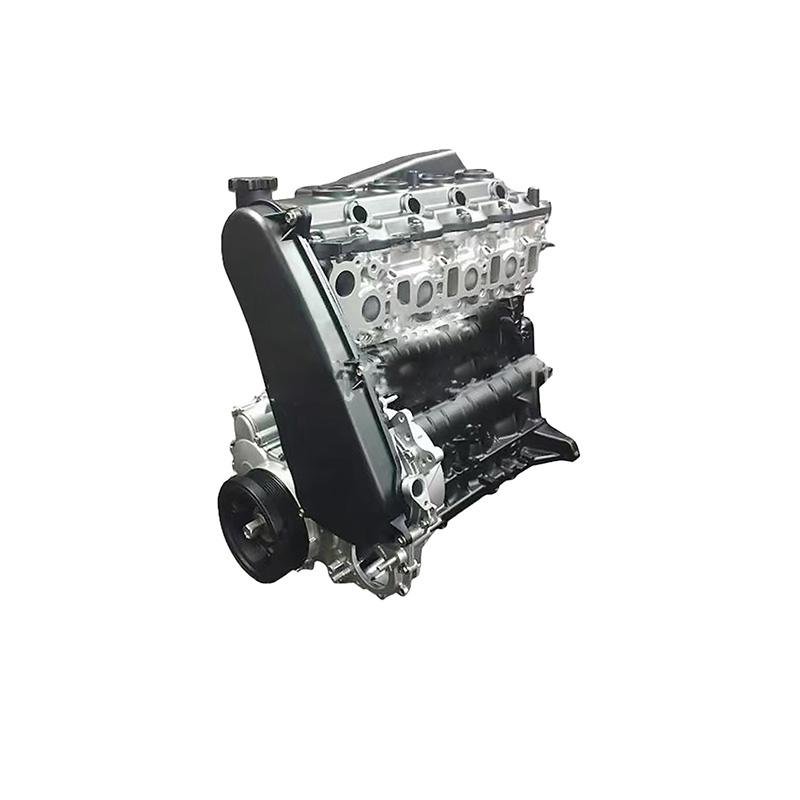

The TOYOTA 1KD Engine Parts Gasoline Motor is a real car engine. Not a model.
Shanhedongli offers all models of HONDA engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market.
