The 2.4-liter Toyota 2AZ-FE engine was produced in Japan, China, and the USA from 2000 to 2019 and was installed on the most popular models of the concern, such as Harrier, Previa, RAV4, and Camry. The units of this series are known for the problem with the breakdown of the threads of the cylinder head bolts.
The AZ family also includes engines: 1AZ-FE, 1AZ-FSE, 2AZ-FSE, and 2AZ-FXE.
This motor debuted in 2000 and was assembled at factories in Japan, China, and the USA. The design for that time was classic: an aluminum block with cast-iron sleeves and an open cooling jacket, an aluminum 16-valve head without hydraulic lifters, and a timing chain drive with a variable valve timing system on the intake camshaft. As with many engines larger than 2.0 liters, a block of balance shafts was used here.
The motor has been upgraded a couple of times and in addition to the basic version type 00, there are type 03 and type 06, which differ in minor changes in the engine electrics and the environmental part. The 2006 modification also received new blockhead bolts with a long thread of 30 mm, since the old bolts with a 24 mm thread often did not stand up, which led to the failure of the cylinder head. Versions after 2008 have an increased compression ratio from 9.6 to 9.8 and more power.
The 2AZ FE Engine Part was installed on:
- For Toyota Alphard 1 (AH10) in 2002 – 2008; Alphard 2 (AH20) in 2008 – 2015;
- For Toyota Camry 5 (XV30) in 2001 – 2006; Camry 6 (XV40) in 2006 – 2011;
- For Toyota Harrier 1 (XU10) in 2000 – 2003; Harrier 2 (XU30) in 2003 – 2008;
- For Toyota Highlander 1 (XU20) in 2000 – 2007;
- For Toyota Ipsum 2 (XM20) in 2001 – 2009;
- For Toyota Mark X Zio 1 (NA10) in 2007 – 2013;
- For Toyota Matrix 2 (E140) in 2009 – 2014;
- For Toyota Previa 2 (XR30) in 2000 – 2005; Previa 3 (XR50) in 2006 – 2019;
- For Toyota RAV4 2 (XA20) in 2003 – 2005; RAV4 3 (XA30) in 2005 – 2008;
- For Toyota Solara 1 (XV20) in 2001 – 2003; Solara 2 (XV30) in 2003 – 2008;
- For Scion xB E150 in 2007 – 2015;
- For Scion tC AT10 in 2004 – 2010;
- For Pontiac Vibe 2 in 2009 – 2010.
| Production years | 2000-2019 |
| Displacement, cc | 2362 |
| Fuel system | injector |
| Power output, hp | 145 – 170 |
| Torque output, Nm | 215 – 225 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 88.5 |
| Piston stroke, mm | 96 |
| Compression ratio | 9.6 – 9.8 |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | VVT-i |
| Turbocharging | no |
| Recommended engine oil | 5W-20, 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Toyota Camry 2007)— city— highway— combined | 11.6-6.7-8.5 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 133 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

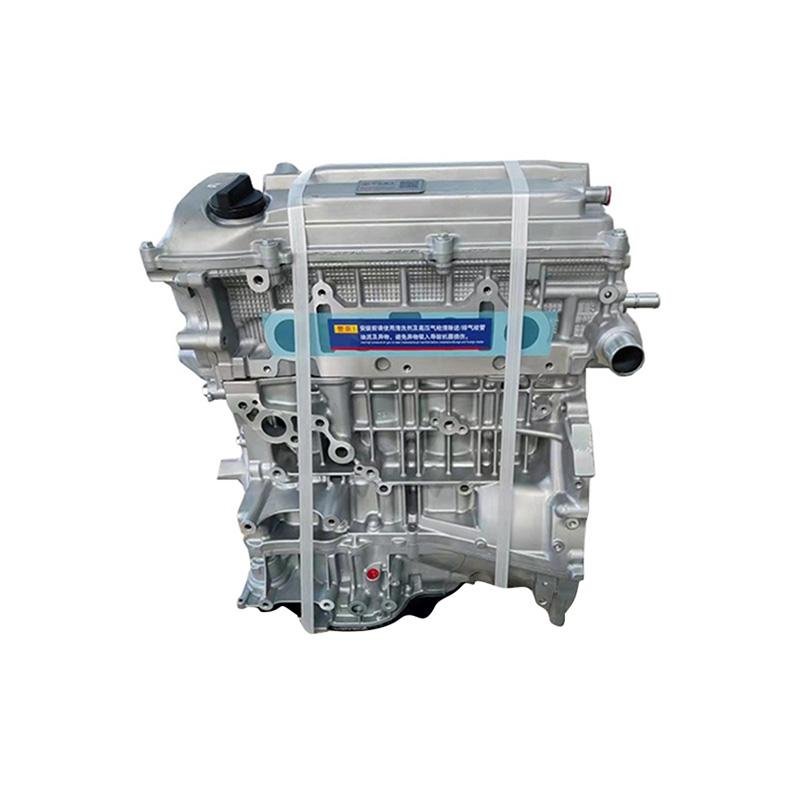

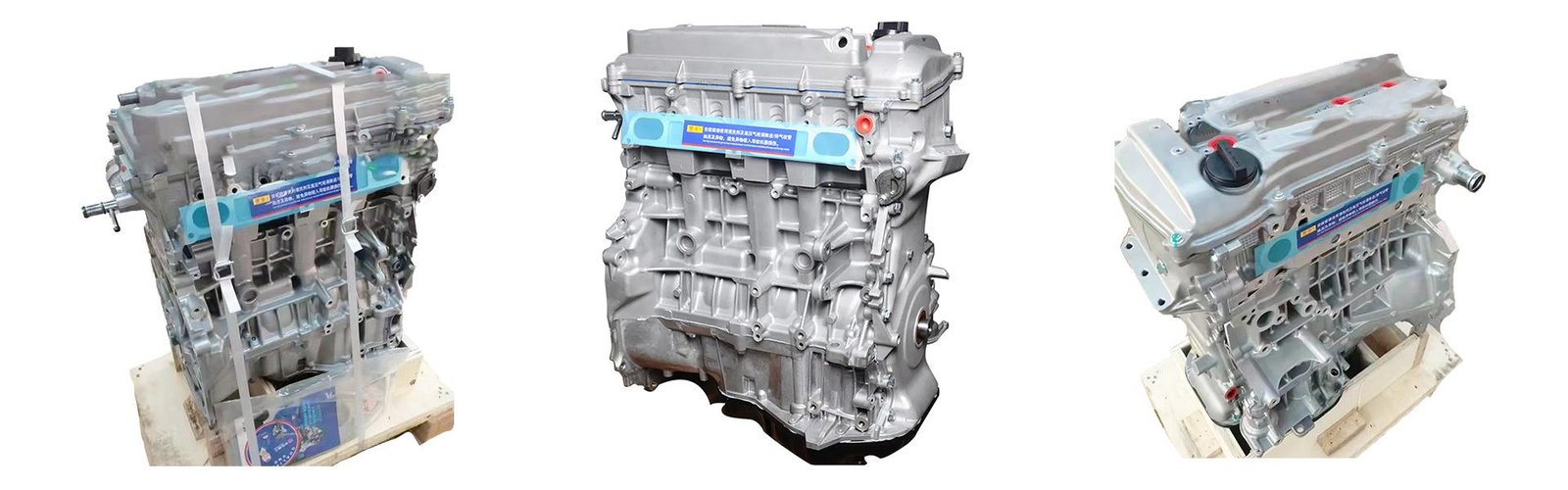

The TOYOTA 2AZ FE Engine Parts Gasoline Motor car engine is a real car engine. Not a model.
Shanhedongli offers all models of HONDA engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market.
