The 2.7-liter Toyota 3RZ-FE engine was produced from 1994 to 2004 in Japan for pickups and SUVs. This is one of the most voluminous 4-cylinder power units in the line, and the engineers had to complicate its design with the presence of 2 balancer shafts in the crankcase.
3RZ-FE turned out to be the most successful example of the “RZ” series of motors. In this engine, Toyota designers managed to optimally use the main advantages of the inline 4-cylinder layout (low manufacturing cost, simplicity, and reliability of operation) and at the same time minimize its disadvantages due to the use of a complex balance shafts in the design.
As a result, Toyota received a fairly powerful and inexpensive gasoline engine, which was successfully installed on jeeps and numerous minivans of the company for 12 years both domestically and in other automotive markets of the world (Europe, North America, Asia, and Middle East).
The RZ family includes engines: 1RZ-E, 2RZ-E, 2RZ-FE, 3RZ-FE.
The Car Engine 3RZ FE was installed on:
- Toyota 4Runner 3 (N180) in 1995 – 2002;
- Toyota HiAce 4 (H100) in 1994 – 2004;
- Toyota Hilux N150 in 1997 – 2004;
- Toyota LC Prado 90 (J90) in 1996 – 2002; LC Prado 120 (J120) in 2002 – 2004;
- Toyota Tacoma 1 (N140) in 1995 – 2004.
| Production years | 1994-2004 |
| Displacement, cc | 2693 |
| Fuel system | injector MPI |
| Power output, hp | 145 – 150 |
| Torque output, Nm | 230 – 240 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 95 |
| Piston stroke, mm | 95 |
| Compression ratio | 9.5 – 10 |
| Features | ESA |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.4 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Toyota Land Cruiser Prado 2000)— city— highway— combined | 17.8-10.2-13.2 |
| Engine lifespan, km | ~500 000 |
| Weight, kg | 175 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

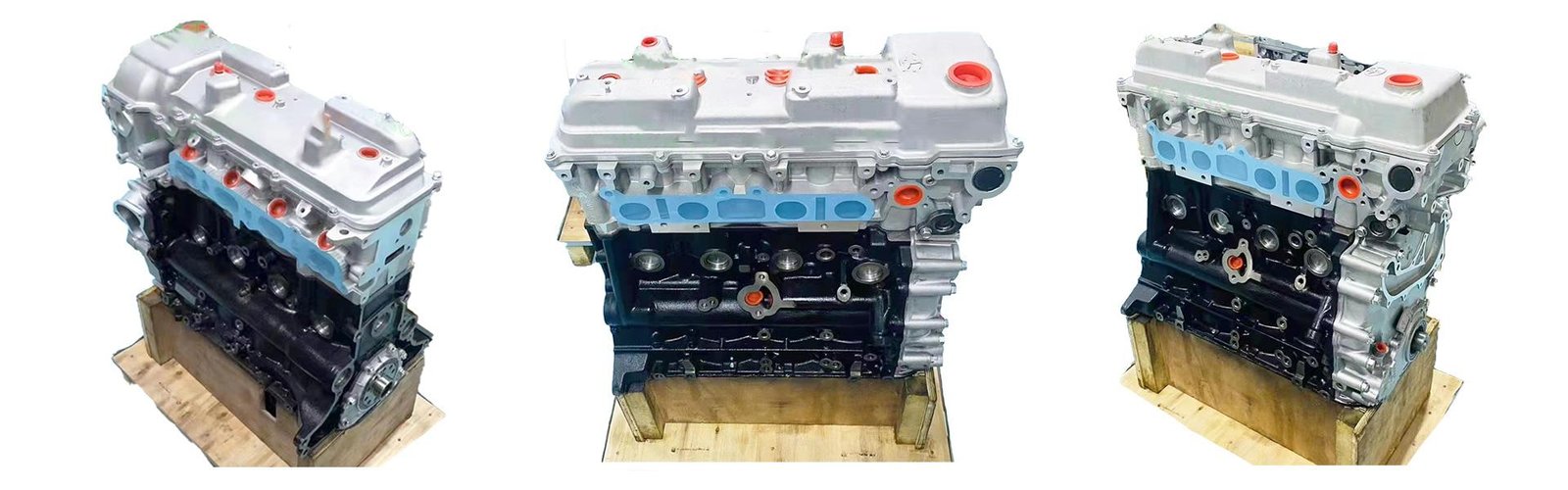

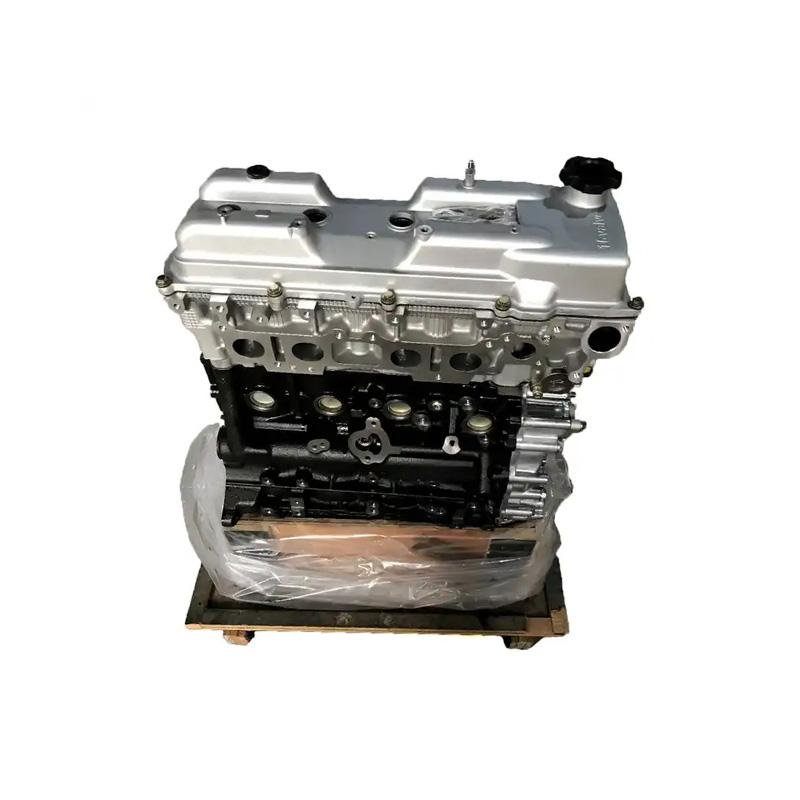

The TOYOTA Car Engine 3RZ FE Gasoline Motor is a real car engine. Not a model.
Shanhedongli offers all models of HONDA engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market.
