Like many Toyota engines from the 80s and 90s, the 1FZ is very simple and reliable. No miscalculations were made in the design. Replacement of the old F-series, solid classic high-volume engine. Installed in 1992-2009 for heavy SUV (Land Cruiser 70..80..100), the carburetor version continues to be used on special vehicles.
The 4.5-liter Toyota 1FZ-F engine was produced from 1984 to 2009 only at the Japanese plant of concern and was installed on Land Cruiser SUVs in versions for developing markets. This power unit is the longest-lived carburetor engine on the planet.
The Toyota 1FZ-FE engine was assembled from 1992 to 2009 and installed on the very popular Land Cruiser SUVs and on the Lexus LX.
When upgrading this engine in 1998, ignition coils were used instead of a distributor.
| Production years | 1984-2009 |
| Displacement, cc | 4477 |
| Fuel system | carburetor (1FZ-F)-injector (1FZ-FE) |
| Power output, hp | 190 (1FZ-F)-205 – 240 (1FZ-FE) |
| Torque output, Nm | 363 (1FZ-F)-370 – 410 (1FZ-FE) |
| Cylinder block | cast iron R6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 100 |
| Piston stroke, mm | 95 |
| Compression ratio | 8.1 (1FZ-F)-9.0 (1FZ-FE) |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 7.4 |
| Fuel type | petrol |
| Euro standards | EURO 1 (1FZ-F)-EURO 2/3 (1FZ-FE) |
| Fuel consumption, L/100 km (for Toyota Land Cruiser 100 2000)— city— highway— combined | 22.4-13.3-17.1 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 290 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

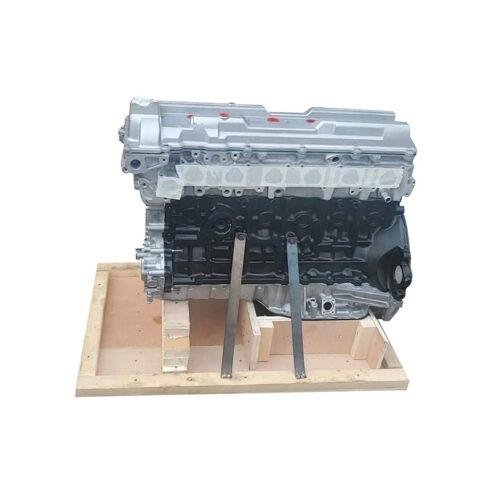

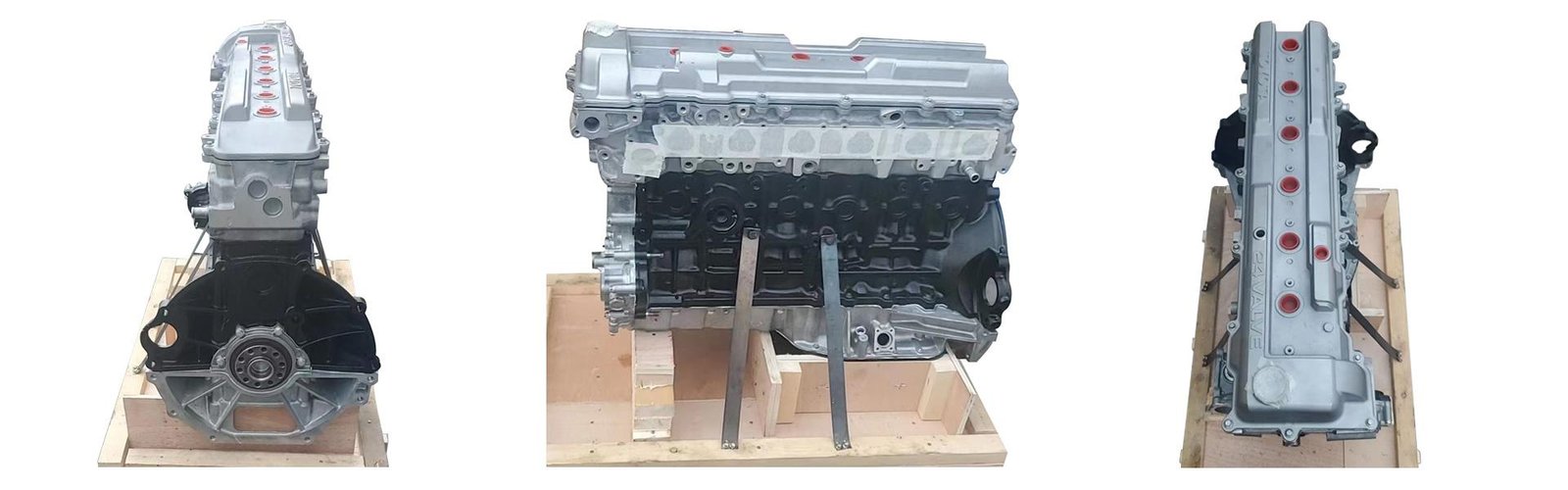

The TOYOTA Petro Engine 1FZ FE Gasoline Motor is a real car engine. Not a model.
Shanhedongli can supply various brands of automobile engines, auto accessories, and rare auto parts in the market, as well as pistons, valve covers, oil pumps cylinder blocks, etc.
