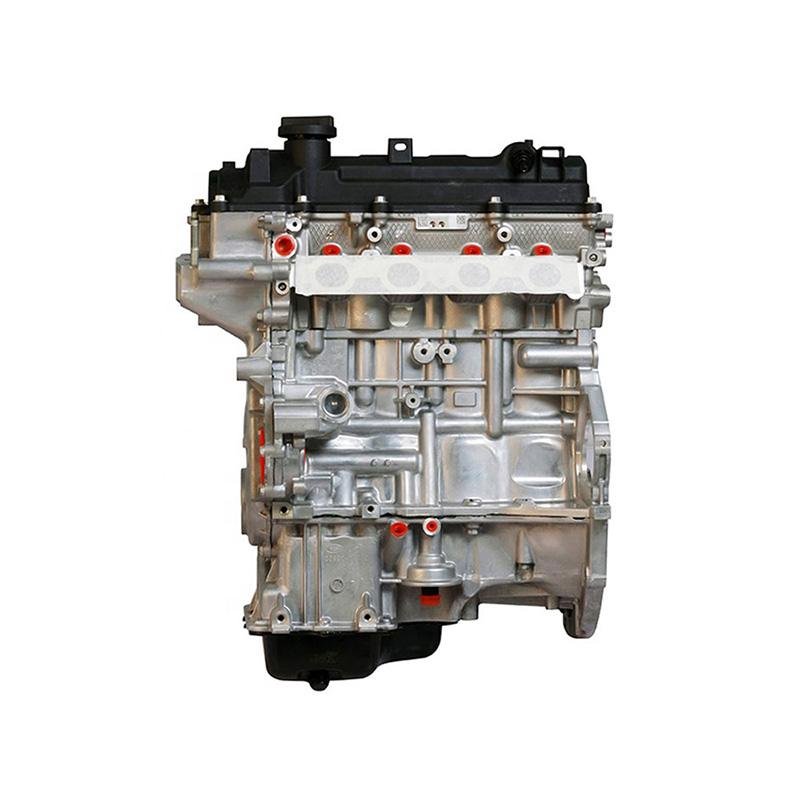

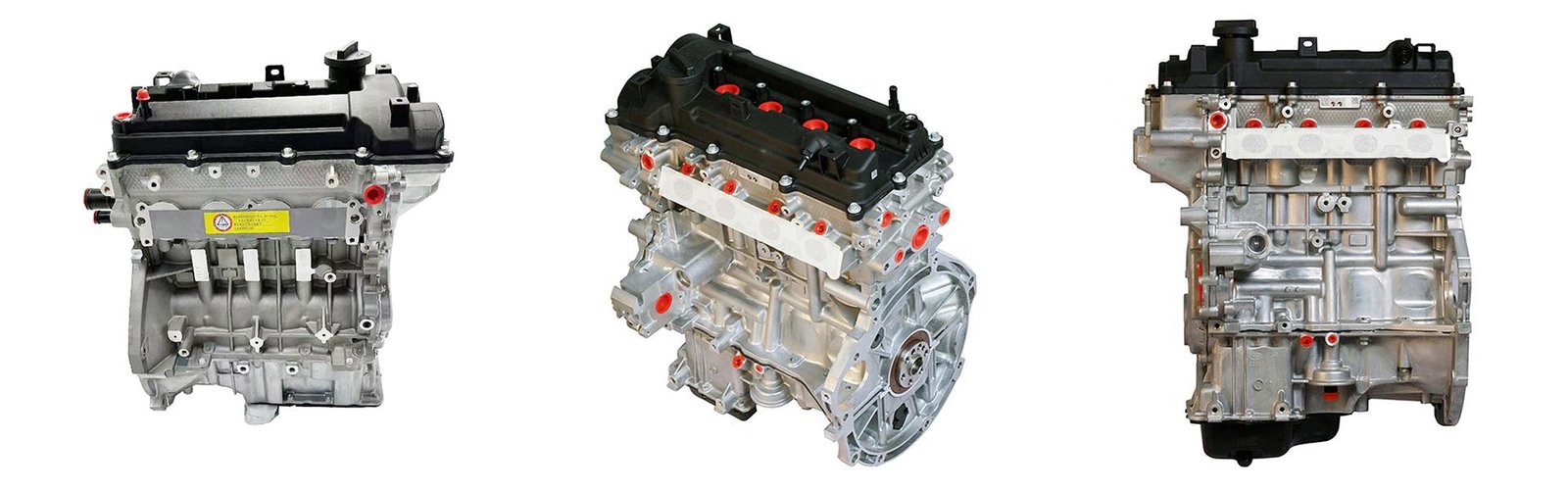

The 1.4-liter 16-valve Hyundai G4LC engine was introduced by the company in 2014 and is known in many markets for such popular models as the Rio 4 and Solaris 2. In Europe, this power unit was found on the i20, i30, Ceed, Stonic, and the fifth-generation Accent.
In 2014, the 1.4-liter engine of the Kappa family debuted on the second generation of the i20 model. This is a typical engine for its time, equipped with multiport fuel injection with an aluminum block, cast iron liners, a 16-valve head with hydraulic lifters, a timing chain, and Dual CVVT phasers on the intake and exhaust camshafts. There is also a plastic intake manifold with a VIS geometry change system.
The manufacturer took into account the problematic experience of operating the 1.4-liter G4FA engine of the Gamma series and equipped the G4LC engine with piston cooling oil nozzles, and also modified the exhaust manifold so that catalyst crumbs could not enter the cylinders.
The HYUNDAI Engine G4LC was installed on:
- Hyundai Accent 5 (YC) since 2017;
- Hyundai i20 2 (GB) in 2014 – 2018;
- Hyundai i30 2 (GD) in 2015 – 2017; i30 3 (PD) since 2017;
- Hyundai Solaris 2 (HC) since 2017;
- Kia Ceed 2 (JD) in 2015 – 2018; Ceed 3 (CD) since 2018;
- Kia Rio 4 (FB) since 2017; Rio 4 (YB) since 2017;
- Kia Rio X-Line 1 (FB) since 2017;
- Kia Rio X 1 (FB) since 2020;
- Kia Stonic 1 (YB) in 2017 – 2019.
| Production years | since 2014 |
| Displacement, cc | 1368 |
| Fuel system | distributed injection |
| Power output, hp | 100 |
| Torque output, Nm | 133 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 72 |
| Piston stroke, mm | 84 |
| Compression ratio | 10.5 |
| Features | VIS |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 3.7 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Hyundai Solaris 2018)— city— highway— combined | 7.2-4.8-5.7 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 85.9 (without attachments) |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.
The Engine Part G4LC is a real car engine. Not a model.
Shanhedongli can provide all brands of car engines, car parts, accessories, and hard-to-find car parts on the market.
