The 2.0-liter Hyundai G4GC engine was assembled at the plant in Ulsan from 2000 to 2011 and was installed on such popular models of the company as the Sonata, Tucson, Kia Seed, Cerato, and Soul. This unit belongs to the updated Beta II line and has an analog for L4GC gas fuel.
In 2000, the 2.0-liter unit of the Beta II family debuted on the third-generation Elantra, and already in 2003 this engine was updated: it received an intake camshaft dephase. The rest of the engine design is quite typical for the Beta series, here is a cast-iron cylinder block, an aluminum 16-valve cylinder head without hydraulic lifters, and a combined timing drive: the crankshaft rotates the exhaust camshaft using a belt, which is connected to the intake camshaft by a chain.
Also here is multiport fuel injection, a closed-type liquid cooling system with forced circulation, and a conventional pressure and splash lubrication system.
The Beta family includes engines: G4GR, G4GB, G4GM, G4GC, G4GF.
The Car Motor G4GC was installed on:
- Hyundai Coupe 2 (GK) in 2002 – 2008;
- Hyundai Elantra 3 (XD) in 2000 – 2006; Elantra 4 (HD) in 2006 – 2011;
- Hyundai i30 1 (FD) in 2007 – 2010;
- Hyundai Sonata 4 (EF) in 2006 – 2011;
- Hyundai Trajet 1 (FO) in 2004 – 2008;
- Hyundai Tucson 1 (JM) in 2004 – 2010;
- Kia Carens 2 (FJ) in 2004 – 2006;
- Kia Ceed 1 (ED) in 2006 – 2010;
- Kia Cerato 1 (LD) in 2003 – 2008;
- Kia ProCeed 1 (ED) in 2007 – 2010;
- Kia Soul 1 (AM) in 2008 – 2011;
- Kia Sportage 2 (KM) in 2004 – 2010.
Production years | 2000-2011 |
Displacement, cc | 1975 |
Fuel system | distributed injection |
Power output, hp | 136 – 143 |
Torque output, Nm | 179 – 186 |
Cylinder block | cast iron R4 |
Block head | aluminum 16v |
Cylinder bore, mm | 82 |
Piston stroke, mm | 93.5 |
Compression ratio | 10.1 |
Hydraulic lifters | no |
Timing drive | chain & belt |
Phase regulator | yes |
Turbocharging | no |
Recommended engine oil | 5W-30, 5W-40 |
Engine oil capacity, liter | 4.5 |
Fuel type | petrol |
Euro standards | EURO 3/4 |
Fuel consumption, L/100 km (for Hyundai Tucson 2005)— city— highway— combined | 10.4-6.6-8.0 |
Engine lifespan, km | ~500 000 |
Weight, kg | 144 |
Packing & Delivery
Purchase Instructions:
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

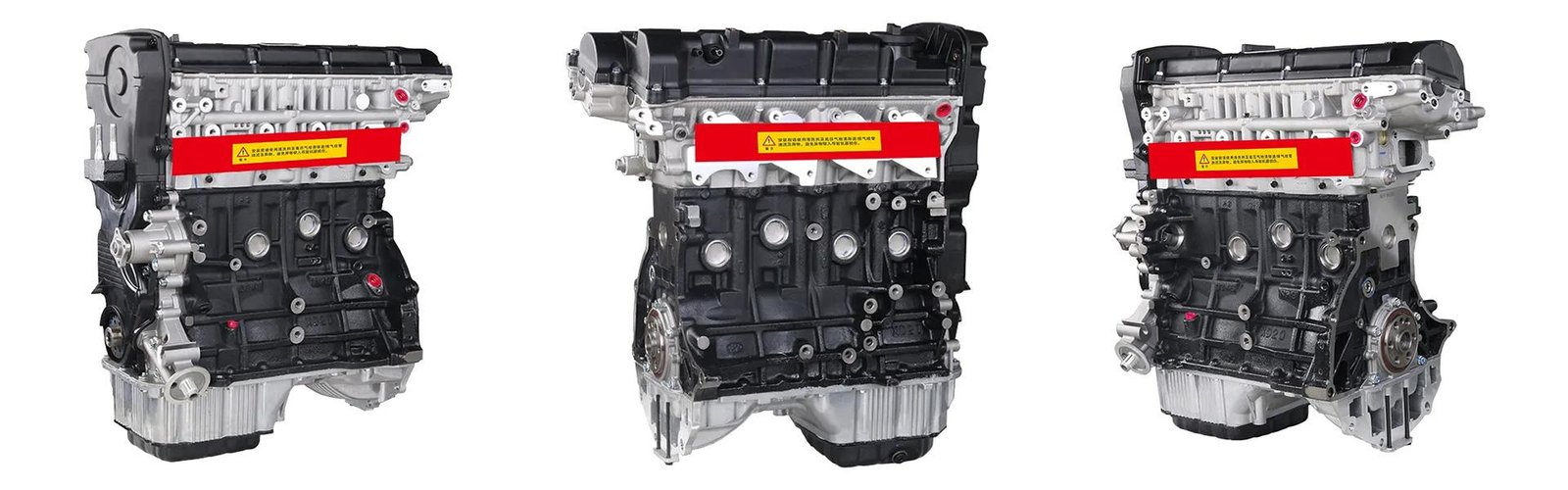

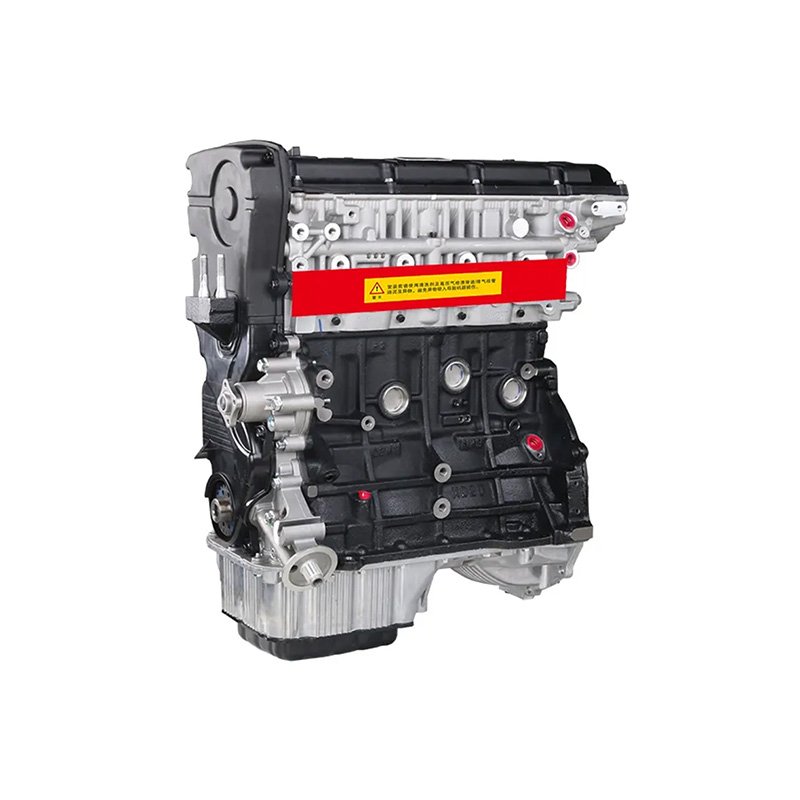

The HYUNDAI G4GC engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
