Hyundai’s 1.6-liter G4FD or 1.6 GDI engine was first introduced in 2009 and is installed in several popular Hyundai models such as the Tucson, Veloster and Soul. This motor belongs to the Gamma II line and is distinguished by a direct fuel injection system.
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
In 2010, the GDi direct fuel injection unit debuted as part of the Gamma II line. This is a completely modern engine with an aluminum block, thin-walled cast-iron liners, a 16-valve cylinder head without hydraulic lifters, an injection pump driven by an exhaust camshaft, a timing chain drive, and a proprietary Dual CVVT phase control system on two camshafts. There is also a plastic intake manifold with a VIS geometry change system.
In 2015, modifications of this unit for Euro 6 appeared, which, in comparison with engines for Euro 5, lost about 5 hp of power.
The HYUNDAI G4FD engine was installed on:
- Hyundai Accent 4 (RB) in 2010 – 2017; Accent 5 (YC) since 2017;
- Hyundai Elantra 5 (MD) in 2010 – 2015;
- Hyundai i30 2 (GD) in 2011 – 2017;
- Hyundai i40 1 (VF) in 2011 – 2019;
- Hyundai ix35 1 (LM) in 2010 – 2015;
- Hyundai Tucson 3 (TL) since 2015;
- Hyundai Veloster 1 (FS) in 2011 – 2017;
- Kia Carens 4 (RP) in 2013 – 2018;
- Kia Ceed 2 (JD) in 2012 – 2018;
| Production years | since 2009 |
| Displacement, cc | 1591 |
| Fuel system | direct injection |
| Power output, hp | 130 – 140 |
| Torque output, Nm | 160 – 167 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.4 |
| Compression ratio | 11.0 |
| Features | VIS |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 4.2 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Hyundai Veloster 2015)— city— highway— combined | 8.2-6.7-7.5 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 101.9 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

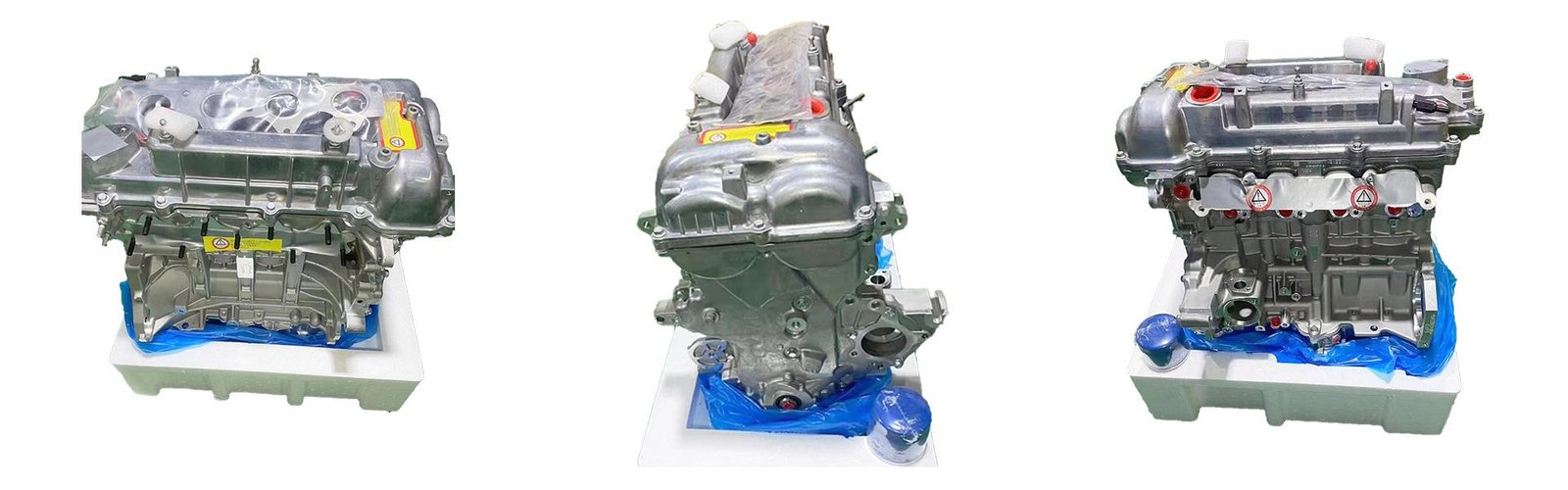

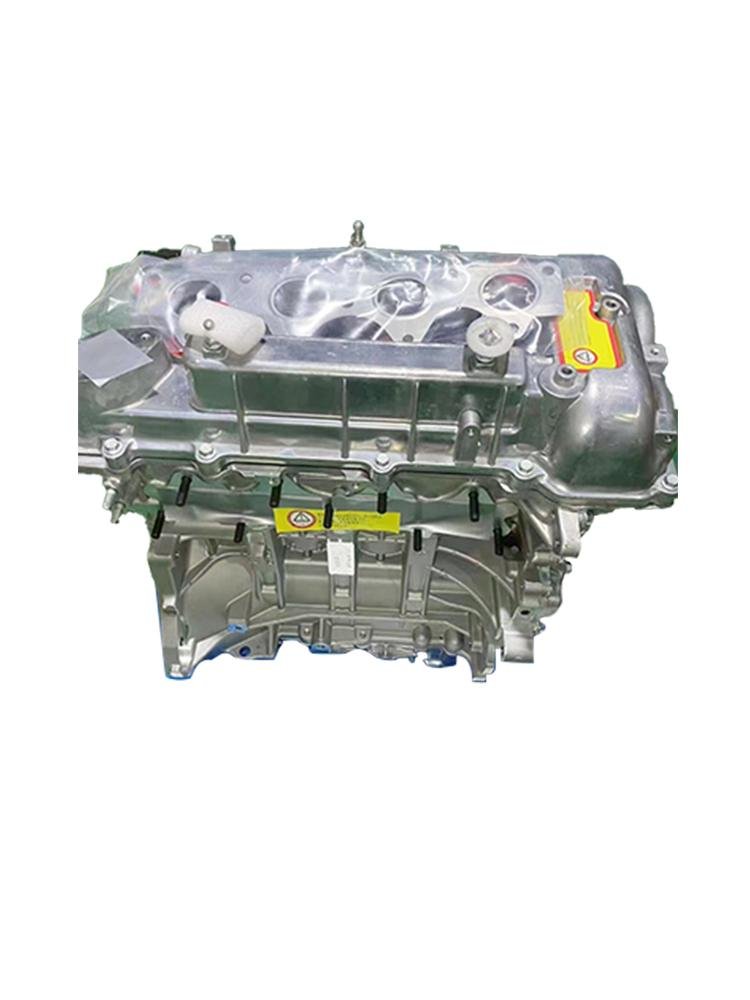

The HYUNDAI G4FD engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
