The 1.6-liter Hyundai G4FG engine has been produced at the concern’s Chinese plant since 2010 and is installed on many popular models, such as Elantra, Creta, Rio or Solaris. This unit belongs to the Gamma II line and in fact it is an updated version of the G4FC engine.
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
In 2010, the engines of the Gamma II family debuted on the fifth generation of the Elantra model, and the first of them was a power unit with distributed fuel injection under the G4FG index. This motor was essentially an updated version of the G4FC and differed from it by the presence of a second phase regulator at the outlet and the design of the oil pump, it is built into the front cover. There is also a new intake manifold equipped with a VIS geometry change system. Otherwise, this is the same engine with an aluminum block, thin-walled cast-iron sleeves, an open cooling jacket, a 16-valve head without hydraulic lifters, and a timing chain.
During the production process, this engine was repeatedly upgraded and the main innovation was the appearance in 2014 of a reliable bush-roller timing chain instead of a lamellar one.
The HYUNDAI G4FG engine was installed on:
- Hyundai Accent 5 (YC) since 2017;
- Hyundai Creta 1 (GS) since 2015; Creta 2 (SU2) since 2021;
- Hyundai Elantra 5 (MD) in 2010 – 2016; Elantra 6 (AD) since 2015; Elantra 7 (CN7) since 2020;
- Hyundai i30 2 (GD) in 2011 – 2017; i30 3 (PD) since 2016;
- Hyundai Solaris 2 (HC) since 2017;
- Hyundai Veloster 1 (FS) in 2011 – 2017;
- Kia Cerato 3 (YD) in 2014 – 2020; Cerato 4 (BD) since 2018;
- Kia Rio 4 (FB) since 2017; Rio 4 (YB) since 2017;
- Kia Rio X-Line 1 (FB) since 2017;
- Kia Rio X 1 (FB) since 2020;
- Kia Ceed 2 (JD) in 2012 – 2018;
- Kia ProCeed 2 (JD) in 2013 – 2018;
- Kia Soul 1 (AM) in 2011 – 2014; Soul 2 (PS) in 2014 – 2019;
- Kia Seltos 1 (SP2) since 2020.
| Production years | since 2010 |
| Displacement, cc | 1591 |
| Fuel system | distributed injection |
| Power output, hp | 123 – 132 |
| Torque output, Nm | 150 – 158 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.4 |
| Compression ratio | 10.5 |
| Features | VIS |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 3.7 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Hyundai Elantra 2014)— city— highway— combined | 8.6-5.2-6.4 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 98.7 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

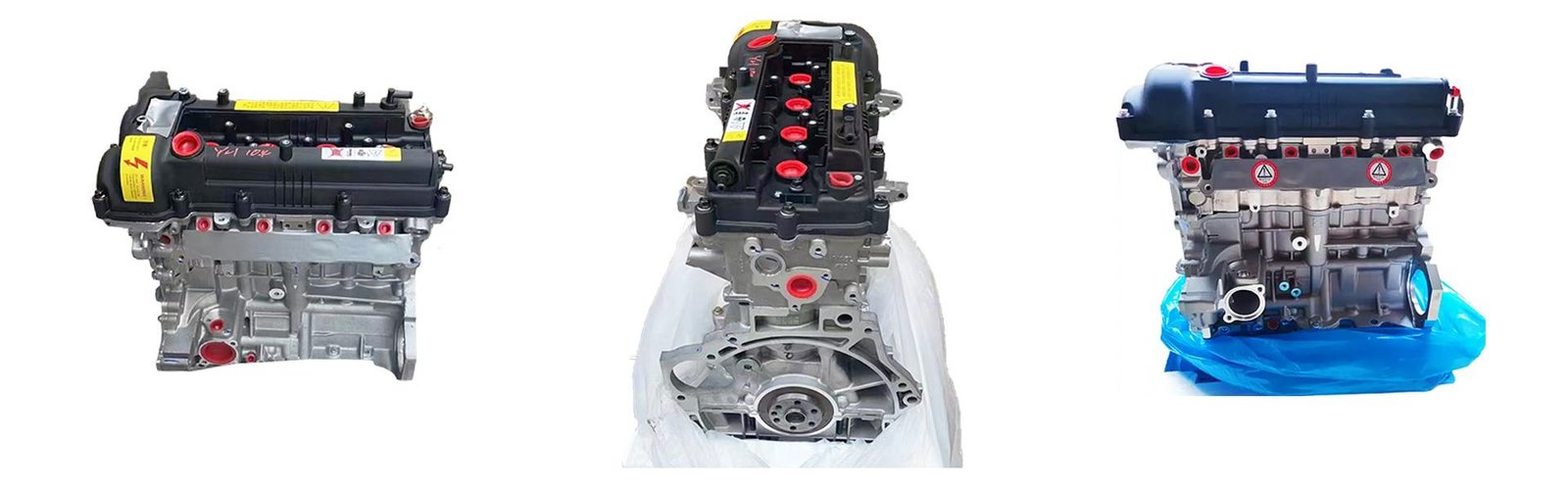

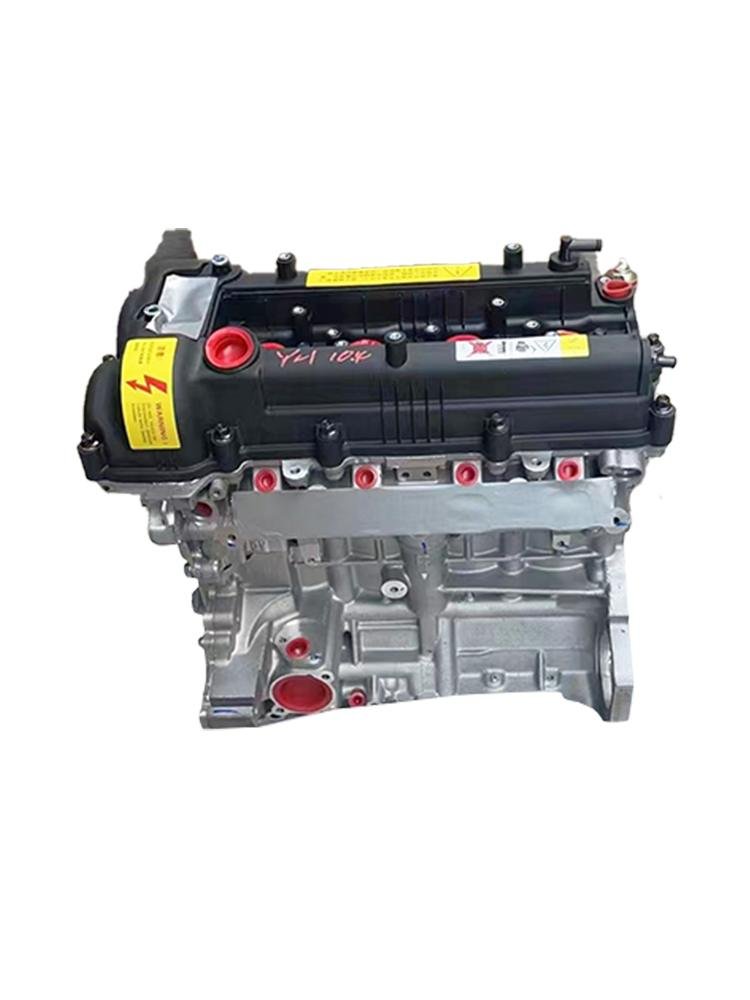

The HYUNDAI G4FG engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
