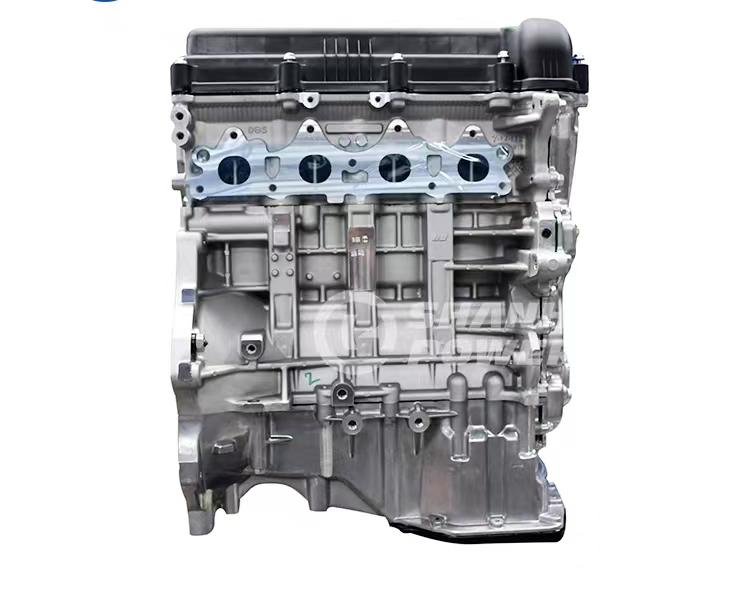

The 1.6-liter Hyundai G4FC engine has been assembled at the concern’s plant in China since 2006 and is installed on many of the company’s mid-size models, such as the Ceed, i20, i30 and Soul.
Gamma family: G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU.
In 2006, the 1.4 and 1.6-liter Gamma units replaced the Alpha series engines. Structurally, both motors are identical: an aluminum block with an open cooling jacket, an aluminum 16-valve DOHC block head without hydraulic lifters, a timing chain drive, an inlet dephase, and a plastic intake manifold without a geometry change system. Like predecessors, the first engines of the series were equipped with distributed fuel injection.
Since 2009, the Gamma family of engines began the transition to a more stringent Euro 5 and a huge ram’s horn exhaust manifold gave way to a small catalytic converter. After that, problems began with scuffing due to the ingress of catalyst crumbs into the cylinders.
The HYUNDAI G4FC engine was installed on:
- For Hyundai Accent 4 (RB) in 2010 – 2018;
- For Hyundai Elantra 4 (HD) in 2006 – 2011;
- For Hyundai i20 1 (PB) in 2008 – 2010;
- For Hyundai ix20 1 (JC) in 2010 – 2019;
- For Hyundai i30 1 (FD) in 2007 – 2012;
- For Hyundai Solaris 1 (RB) in 2010 – 2017;
- For Kia Carens 3 (UN) in 2006 – 2013;
- For Kia Cerato 1 (LD) in 2006 – 2009
- For Cerato 2 (TD) in 2008 – 2013;
- For Kia Ceed 1 (ED) in 2006 – 2012;
- For Kia ProCeed 1 (ED) in 2007 – 2012;
- For Kia Rio 3 (QB) in 2011 – 2017;
- For Kia Soul 1 (AM) in 2008 – 2011;
- For Kia Venga 1 (YN) in 2009 – 2019.
| Production years | since 2006 |
| Displacement, cc | 1591 |
| Fuel system | distributed injection |
| Power output, hp | 120 – 128 |
| Torque output, Nm | 154 – 158 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.4 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 3.7 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Hyundai Solaris 2015)— city— highway— combined | 8.1-4.9-6.1 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 99.8 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.
The HYUNDAI G4FC engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
