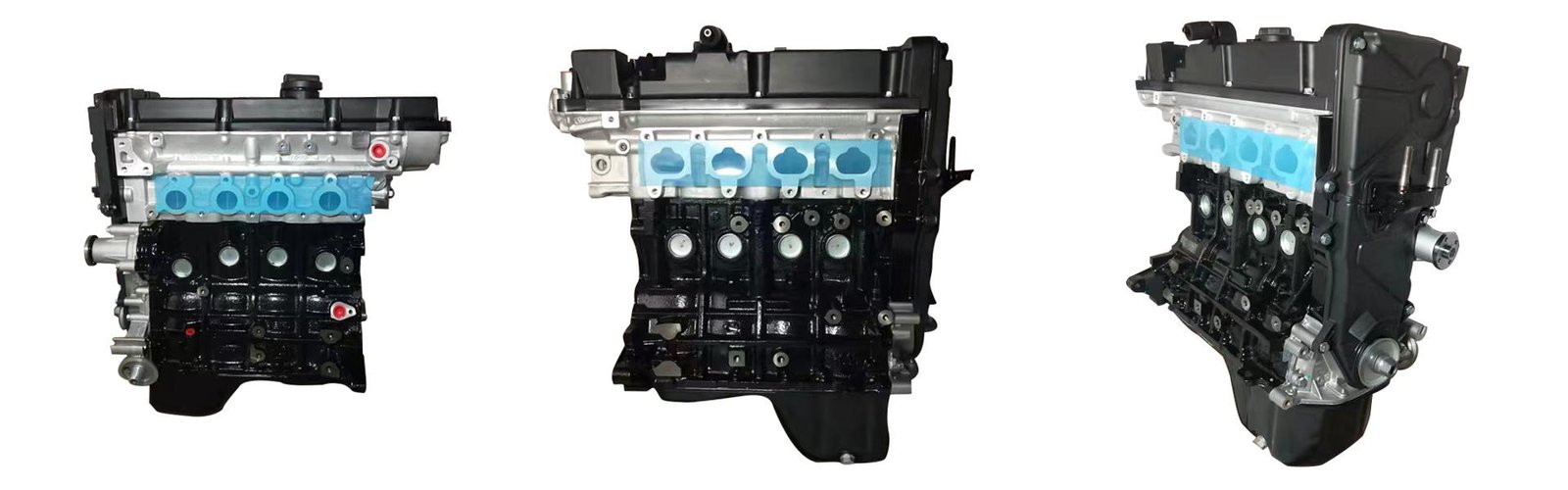

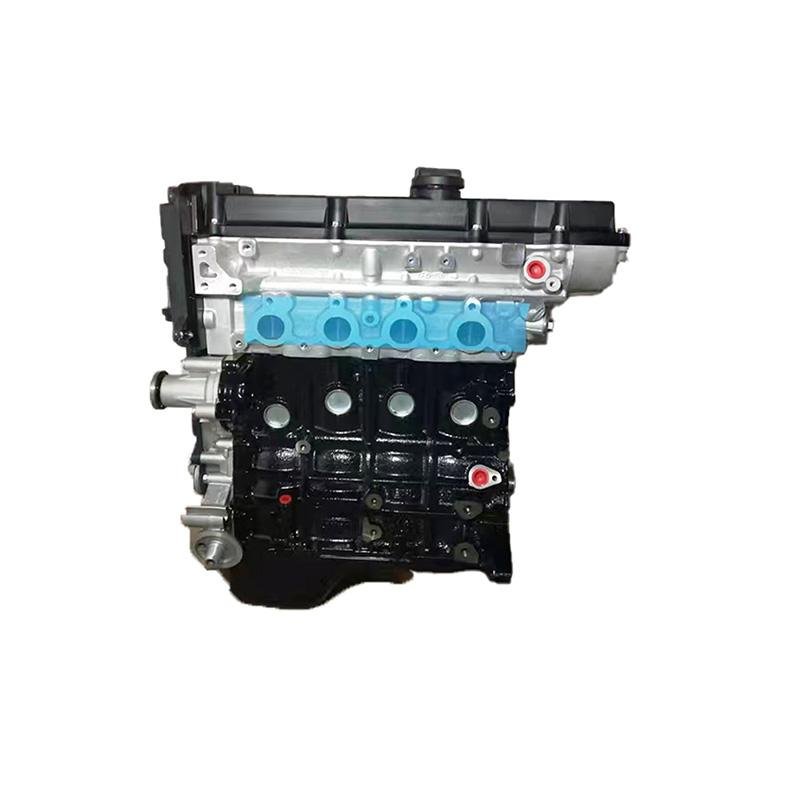

The 1.6-liter 16-valve Hyundai G4ED engine was produced in Korea from 2000 to 2012 and was installed on the group’s most popular models, such as Accent, Elantra, Matrix and Getz. There were two versions of this unit: with and without a CVVT-type phase regulator at the inlet.
In 2000, the 1.6-liter engine of the Alpha family debuted on the Hyundai Elantra model. Structurally, it was a classic power unit with distributed fuel injection, an in-line cast-iron cylinder block, an aluminum 16-valve cylinder head with hydraulic compensators, and a combined timing drive, it consisted of a belt and a short chain between the camshafts.
The first modifications of this engine developed from 103 to 107 hp and from 141 to 146 Nm of torque. In 2005, a version with an inlet dephase appeared, which developed 112 hp and 146 Nm. Such a power unit was installed on the Kia Rio and Cerato and some versions of the Hyundai Elantra.
The Alpha series includes: G4EA, G4EH, G4EE, G4EB, G4EC, G4ER, G4EK, G4ED.
The HYUNDAI G4ED engine was installed on:
- Hyundai Accent 2 (LC) in 2003 – 2005; Accent 3 (MC) in 2005 – 2012;
- Hyundai Coupe 1 (RD) in 2001 – 2002; Coupe 2 (GK) in 2002 – 2006;
- Hyundai Elantra 3 (XD) in 2000 – 2009;
- Hyundai Getz 1 (TB) in 2002 – 2011;
- Hyundai Matrix 1 (FC) in 2001 – 2010;
- Kia Cerato 1 (LD) in 2003 – 2009;
- Kia Rio 2 (JB) in 2005 – 2011.
| Production years | 2000-2012 |
| Displacement, cc | 1599 |
| Fuel system | distributed injection |
| Power output, hp | 103 – 112 |
| Torque output, Nm | 141 – 146 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 76.5 |
| Piston stroke, mm | 87 |
| Compression ratio | 10.0 |
| Hydraulic lifters | yes |
| Timing drive | chain & belt |
| Phase regulator | yes (for the 2005 version) |
| Turbocharging | no |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Hyundai Getz 2007)— city— highway— combined | 7.6-5.1-6.0 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 115.4 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.
The G4ED machine is a real car engine. Not a model.
