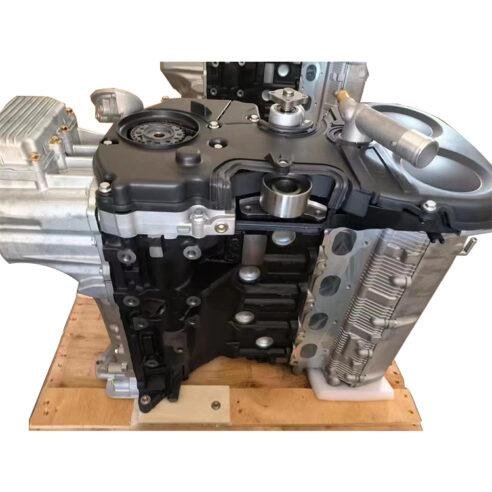

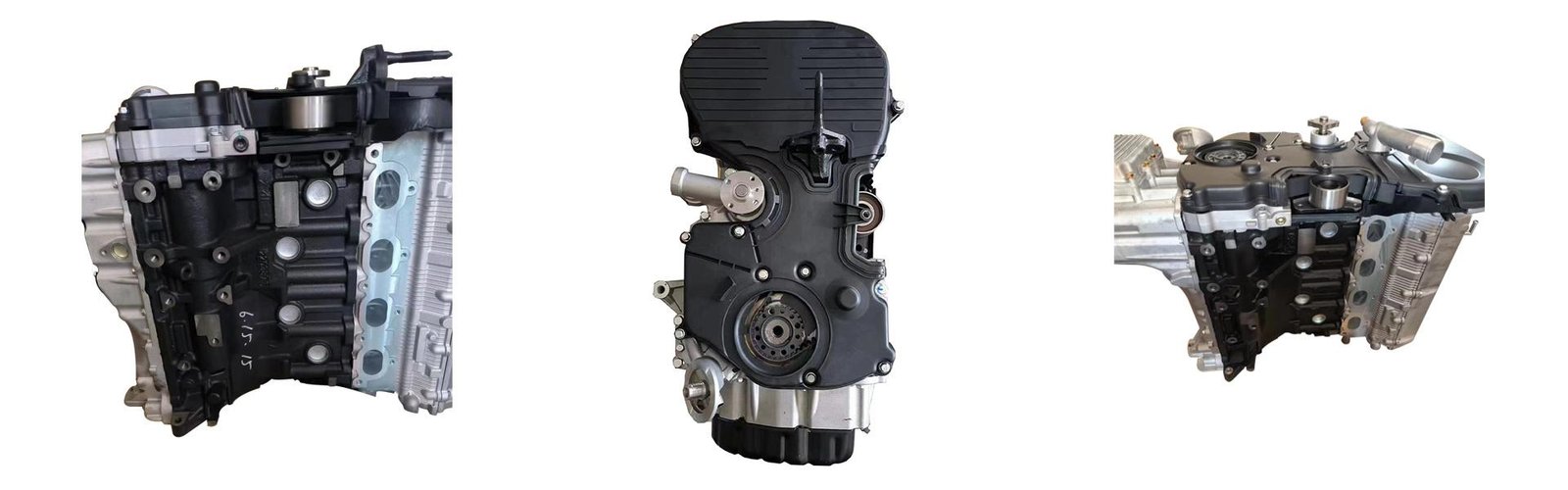

The 2.4-liter Hyundai G4JS engine was assembled at a factory in South Korea from 1998 to 2007 under license from Mitsubishi, as it was only a modification of the 16-valve version of the 4G64 engine. This motor of the Sirius II series is known for the Sorento SUV, as well as the Santa Fe.
In 1998, Hyundai introduced a 2.4-liter unit to replace the 8-valve G4CS, which was also structurally based on the well-known Mitsubishi 4G64 engine. Here is the same cast-iron cylinder block, but already a 16-valve head with hydraulic lifters, distributed fuel injection, as well as a complex timing belt drive and balancer block.
Compared to the old G4CS engine, the updated power unit has other differences: it has its crankshaft and camshafts, a slightly lighter connecting rod and piston group, a different thermostat, oil pump, water pump, sensors, intake, and exhaust manifolds.
Sirius family: 1.6 L – G4CR; 1.8 L – G4CN, G4CM, G4JN; 2.0 L – G4CP, G4JP; 2.4 L – G4JS, G4CS.
The HYUNDAI G4JS engine was installed on:
- Hyundai Santa Fe 1 (SM) in 2000 – 2006;
- Hyundai Sonata 4 (EF) in 1998 – 2005;
- Hyundai Starex 1 (A1) in 2001 – 2007;
- Kia Magentis 1 (GD) in 2000 – 2006;
- Kia Sorento 1 (BL) in 2002 – 2006.
| Production years | 1998-2007 |
| Displacement, cc | 2351 |
| Fuel system | distributed injection |
| Power output, hp | 140 – 150 |
| Torque output, Nm | 190 – 210 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 86.5 |
| Piston stroke, mm | 100 |
| Compression ratio | 10.0 |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Turbocharging | no |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Hyundai Santa Fe 2003)— city— highway— combined | 13.0-7.9-9.8 |
| Engine lifespan, km | ~500 000 |
| Weight, kg | 154.2 (without attachments) |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.
The HYUNDAI G4JS engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
