Mercedes M270 gasoline engines with a volume of 1.6 and 2.0 liters were produced from 2011 to 2019 and installed on models with a transverse engine, such as the A-class and B-class. Similar units for cars with a longitudinal engine are index M274.
R4 Mercedes
engines: M102, M111, M133, M139, M166, M200, M254, M260, M264, M266, M270, M271, M274, M282.
In 2011, a new series of 1.6 and 2.0-liter gasoline power units debuted, which differed in piston stroke, and the engines also had several boost options. The design is quite modern: a 4-cylinder aluminum block with cast-iron sleeves and an open cooling jacket, an aluminum 16-valve cylinder head with hydraulic lifters, a direct fuel injection system with piezo injectors, phase shifters on two camshafts, an IHI AL0070 or IHI AL0071 turbocharger with an air intercooler and a timing chain drive. Also noteworthy is the variable displacement oil pump and electronic thermostat.
1.6-liter engine modifications were optionally equipped with a Camtronic intake system, and 2.0-liter versions had a Lanchester counterbalance mechanism to reduce vibrations.
The Gasoline Motor M270.910 2.5L Engine was installed on:
- For Mercedes A-Class W176 in 2012 – 2018;
- For Mercedes B-Class W246 in 2011 – 2018;
- For Mercedes CLA-Class C117 in 2013 – 2018;
- For Mercedes GLA-Class X156 in 2013 – 2019;
- For Infiniti Q30 1 (H15) in 2015 – 2019;
- For Infiniti QX30 1 (H15) in 2016 – 2019.
| Production years | 2011-2019 |
| Displacement, cc | 1595 (M 270 DE 16 AL red)-1595 (M 270 DE 16 AL)-1991 (M 270 DE 20 AL) |
| Fuel system | direct injection |
| Power output, hp | 102 – 122 (M 270 DE 16 AL red)-156 (M 270 DE 16 AL)-156 – 218 (M 270 DE 20 AL) |
| Torque output, Nm | 180 – 200 (M 270 DE 16 AL red)-250 (M 270 DE 16 AL)-270 – 350 (M 270 DE 20 AL) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 73.7 (M 270 DE 16 AL red)-73.7 (M 270 DE 16 AL)-92 (M 270 DE 20 AL) |
| Compression ratio | 10.3 (M 270 DE 16 AL red)-10.3 (M 270 DE 16 AL)-9.8 (M 270 DE 20 AL) |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | yes |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 5.8 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Mercedes A 250 2015)— city— highway— combined | 7.9-4.9-6.0 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 137 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

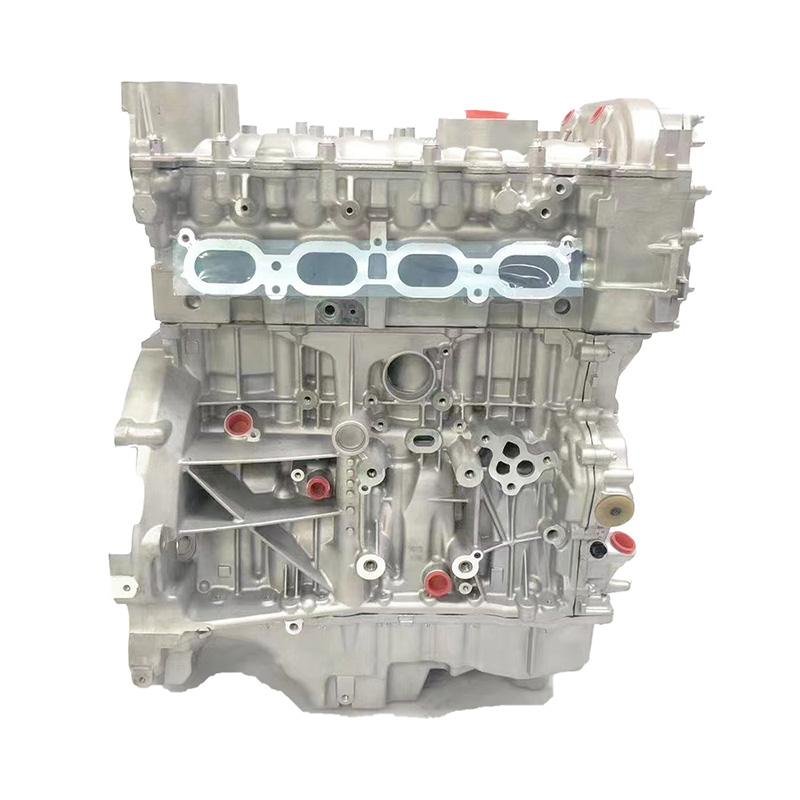

The BENZ M270.910 machine is a real car engine. Not a model.
We are a company with more than 10 years of production experience specializing in a full range of automotive engines for Mercedes-Benz, BMW, Land Rover, Hyundai, Volkswagen, Toyota, Honda &, etc. Also with Piston, Valve Cover, Oil Pump, Cylinder block, and other accessories. If you need anything, please feel free to contact me at any time. Quotes will be provided.
