The 2.4-liter Hyundai G4KC gasoline engine was produced by the company from 2004 to 2010 and was installed on the Sonata and Magentis sedans, as well as the American version of the Carens compact van. Such a unit differs from its 2.0-liter counterpart in the presence of a block of balancing shafts.
In 2004, as part of the Global Engine Alliance, a series of engines of a single design was created: they have an aluminum cylinder block with cast-iron liners and an open cooling jacket, an aluminum 16-valve head not equipped with hydraulic lifters, a timing chain drive and a proprietary CVVT type variable valve timing system on intake camshaft. The 2.4-liter engine was called Hyundai-Kia G4KC, Mitsubishi 4B12 or Chrysler ED3.
The main difference between the 2.4-liter power unit and the 2.0-liter counterpart in the Theta I series was the presence of balance shafts, which are here combined into a single unit with an oil pump.
Theta 2.4L family: G4KC, G4KE, G4KG, G4KJ, G4KK.
The Car Motor G4KC was installed on:
- Hyundai Grandeur 4 (TG) in 2005 – 2009;
- Hyundai Sonata 5 (NF) in 2004 – 2008;
- Kia Carens 3 (UN) in 2006 – 2010;
- Kia Magentis 2 (MG) in 2005 – 2008.
| Production years | 2004-2010 |
| Displacement, cc | 2359 |
| Fuel system | distributed injection |
| Power output, hp | 160 – 165 |
| Torque output, Nm | 219 – 226 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 88 |
| Piston stroke, mm | 97 |
| Compression ratio | 10.5 |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | yes |
| Turbocharging | no |
| Recommended engine oil | 5W-30, 5W-40 |
| Engine oil capacity, liter | 5.3 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Hyundai Sonata 2006)— city— highway— combined | 12.3-7.0-8.9 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 146.1 |
Packing & Delivery
Purchase Instructions：
1. For countries that can support door-to-door delivery, customs formalities, and duties will be handled by us.
2. During the delivery process, we will maintain close communication with the logistics company to ensure real-time updates on the status of your shipment.
3. If you need faster transportation (e.g. air freight), please contact our customer service staff in advance, so that we can provide quotes and services.
4. We provide comprehensive after-sales service with 12-18 months warranty.
5. If you need to buy in bulk, please be sure to contact us for consultation. The customer service staff will provide favorable quotations payment methods and other information according to your needs.
6. If you encounter any problems during the use, please feel free to contact our customer service team, we will be happy to help you.

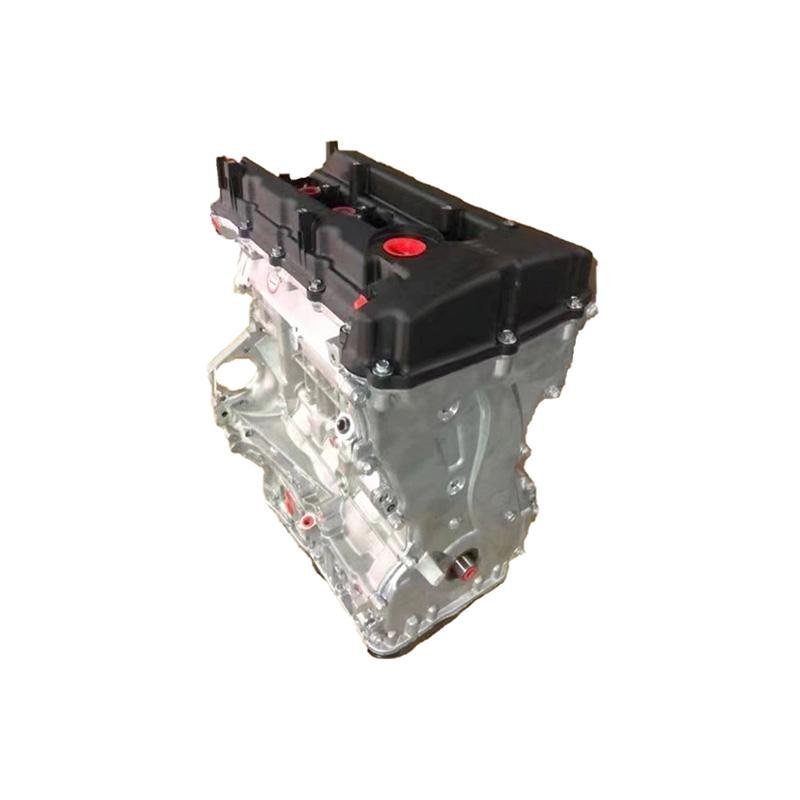

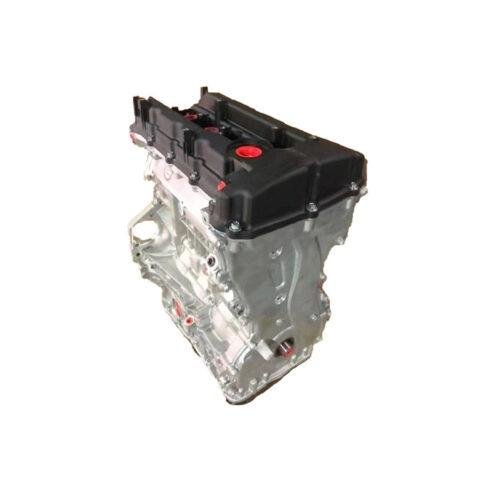

The HYUNDAI G4KC engine is a real car engine. Not a model.
Shanhedongli offers all models of Hyundai engines. As well as all brands of auto engines, auto parts, accessories, and hard-to-find auto parts on the market. If you need anything, please feel free to contact me anytime. Quotes will be provided.
